Source code of dsPIC FFT

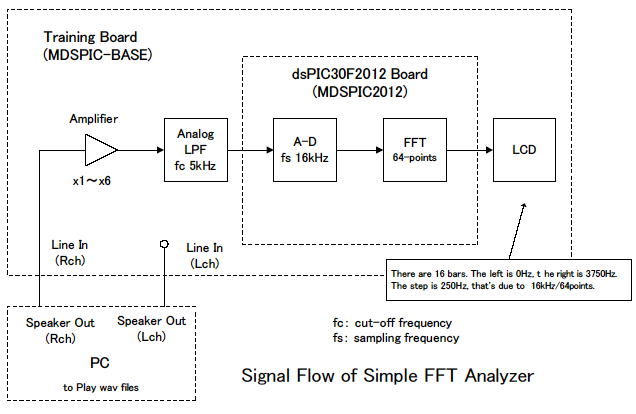

Source code of the simple FFT analyzer It uses some DSP functions like FFTComplexIP, BitReverseComplex etc. The main file is FftAnalyzer.c and most of other files are to control LCD. FftAnalyzer.zip : for MPLAB+C30 Wav files They are to inject test signals into the board from your PC. classic_a.wav classic_a_1k.wav classic_a_2k.wav classic_a_500.wav Block diagram
