BIQUAD8 (Serialized Eight Biquads)

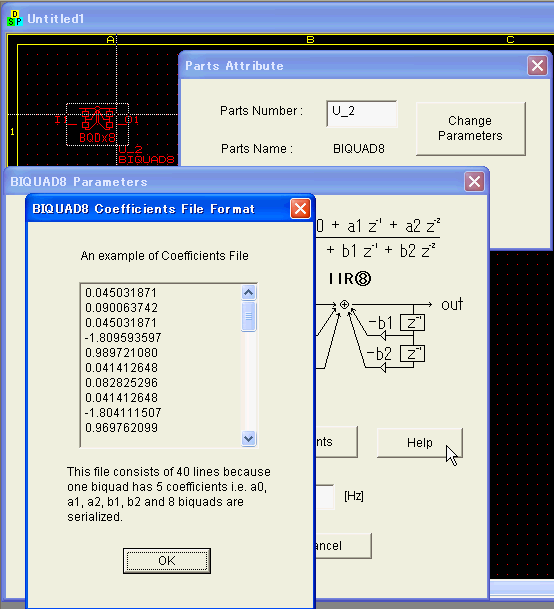

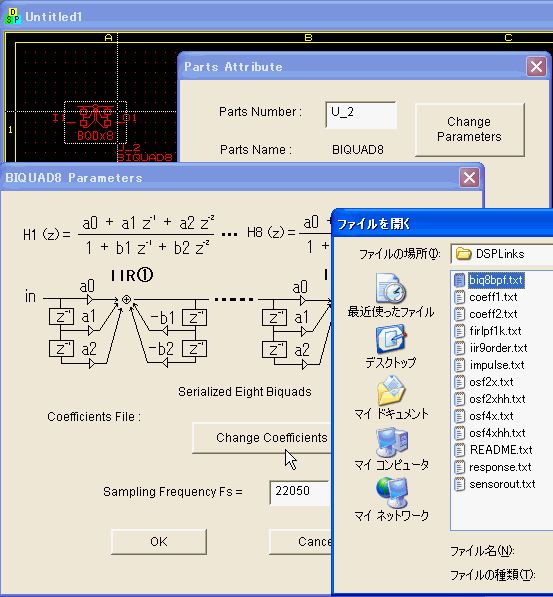

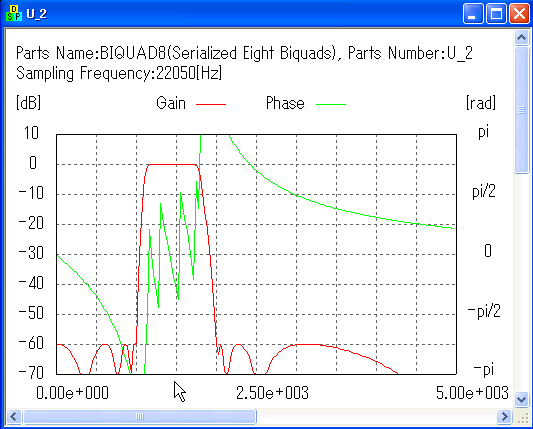

This component is a Serialized Eight Biquads i.e. second order IIR filters are serialized up to eight. Double-click on it and click "Change Parameters", then "Change Coefficients" to set a file which includes IIR coefficients. Left-click to select it and right-click to choose "Open a Monitor". The characteristics of the filter is drawn on the monitor window. "View" -> "Scale Change" on the menu to change the scale. As to the format of coefficients file, click "Help" on BIQUAD8 Parameters dialog. There needs to be 40 lines because one biquad has 5 coefficients, i.e. a0, a1, a2, b1, b2, and there are 8 biquads serialized. Sample Schematics Coming Soon... Related Tutorials There are two type of expression for IIR filters
