Sample10: See the spectrum of various signals (1)
Download the Schematic : This archive contains files for DSPLinks.

Unzip the archive, copy them into DSPLinks directory and open it!! (v1.33 or more)

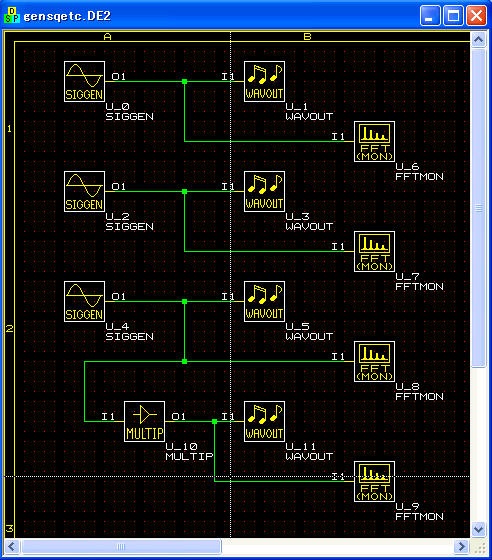

Open monitor windows for each component!!

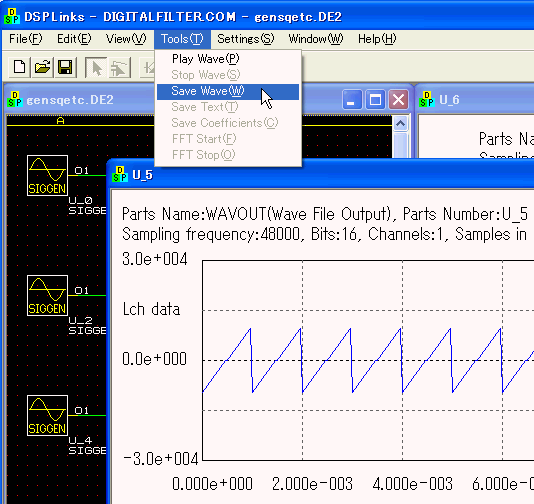

After you open WAVOUT, please choose "Tools" -> "Save Wave" on the menu to save it.

Generate square, triangle and sawtooth wave with any frequency.

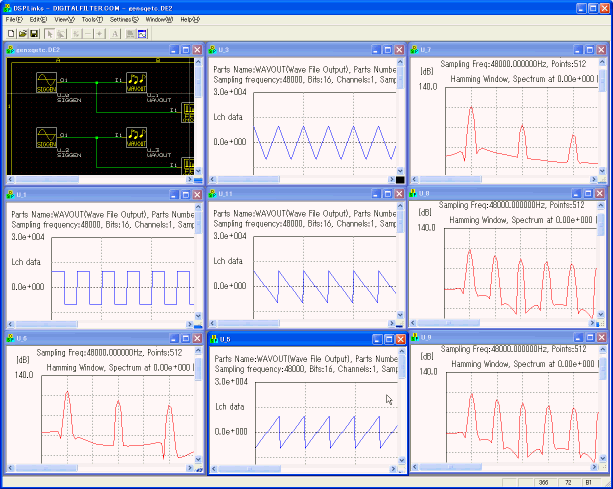

See the spectrum of various signals.
Save it into a Wave file.
