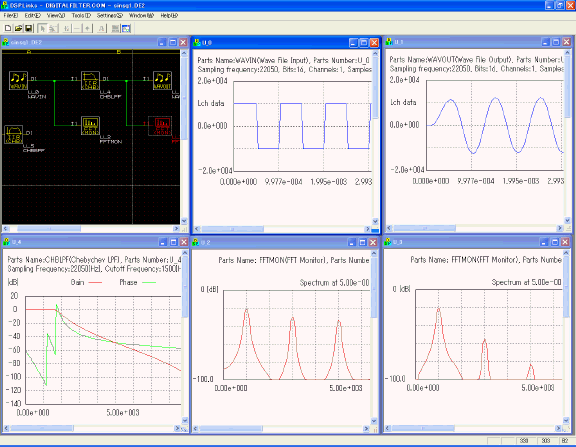

Sample1: Filter square wave and make sine wave.
Download the Schematic : This archive contains files for DSPLinks.

Unzip the archive, copy them into DSPLinks directory and open it!!

Open monitor windows for each component!!

See cutoff characteristics of IIR filter.
See the spectrum of square and sine wave.
See why we use FFT.
Hear the sound of Wave files.
