Then you see a schematic like following. This is to execute AM (Amplitude Modulation).

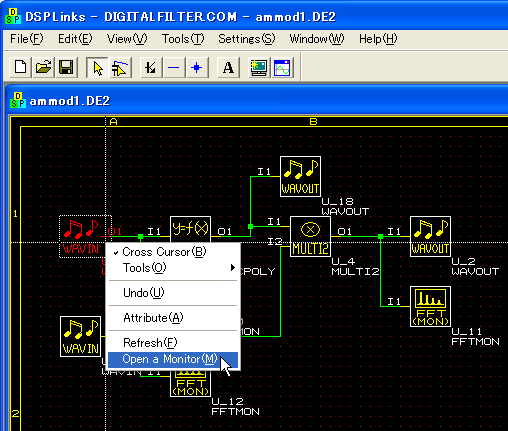

Do left click to select WAVIN (U_0) and right click to choose "Open a Monitor".

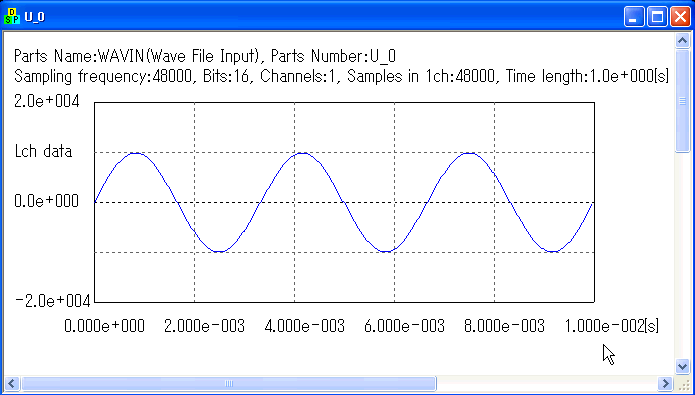

This is 300Hz sine wave generated by a Wave file. We use this as Base Band.

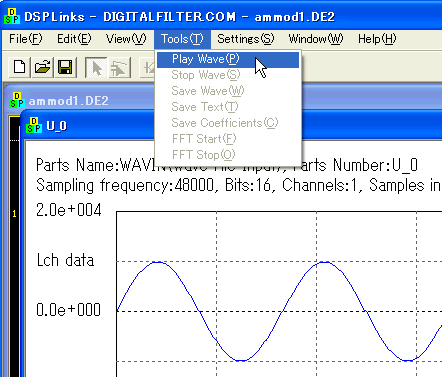

You can listen to the sound by choosing "Tools" -> "Play Wave" on the menu.
