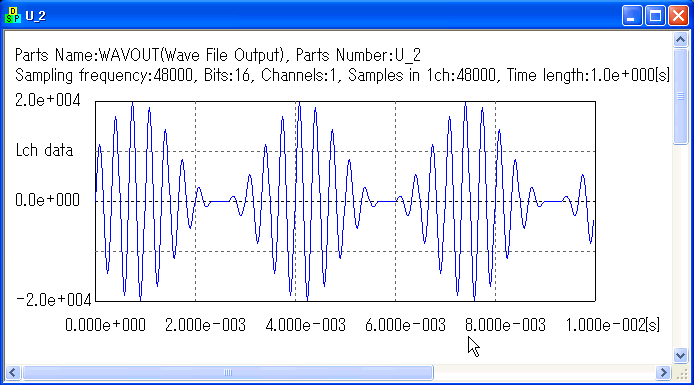

Let's see WAVOUT (U_2) which shows you the output of multiplier.


The AM signal is modulated like this.

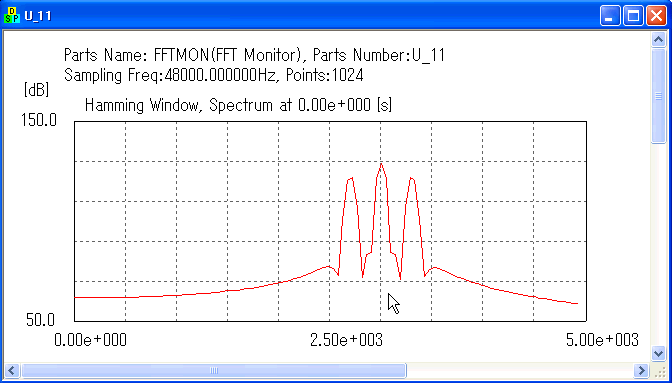

You can check the spectrum of the AM signal. Open a monitor for FFTMON (U_11).


There are peaks at 2700Hz (3000 - 300) and 3300Hz (3000 + 300). That's because the Carrier is 3kHz and Base Band is 300Hz.


That's it for this class. We use a multiplier to mix Base Band and Carrier. Please note that the Base Band needs to be always positive value before the multiplier.

In next class, we will put a demodulator after the circuit of this class.
