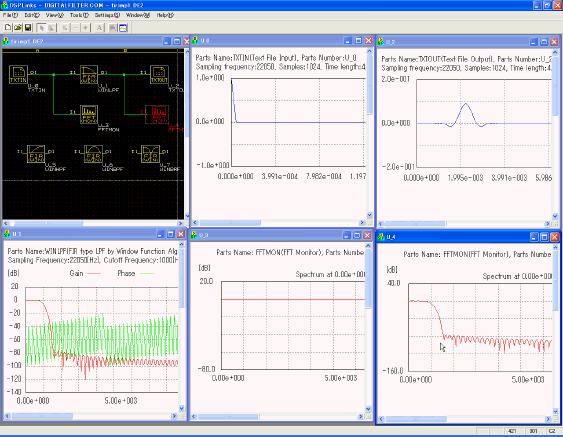

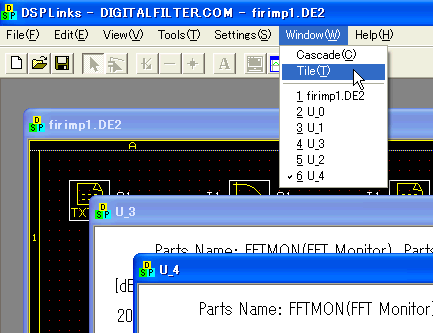

 If you choose "Window"->"Tile" on the menu, you
can see all monitor windows at the same time. Please check the spectrum of impulse response is the same as FIR filter's

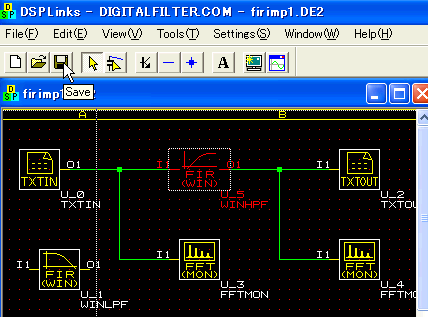

frequency response.  You may have found there are three more components lower part of the schematic.
Let's replace WINHPF (FIR type High Pass Filter by Window Function Algorithm)
for WINLPF.  You need to save the schematic every time you modify that.
|
