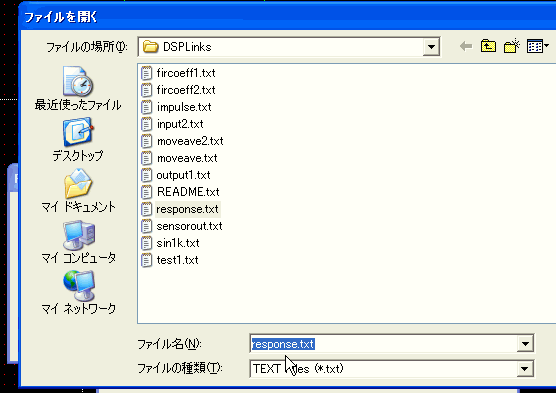

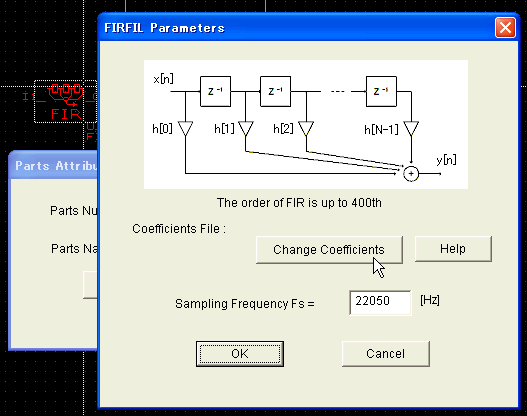

Then you may find a component FIRFIL(FIR Filter) lower part of the schematic. Please double-click on it and click "Change Parameters". Then a new dialog appears. Please click "Change Coefficients" to set a file of coefficients. Choose the "response.txt" that was generated by TXTOUT, i.e. the IIR filter's impulse response will become coefficients of the FIR filter. Let's open a monitor window for FIRFIL to see its characteristics. Next
