 So we put RMZLPF(U_5), that is an FIR Low Pass Filter designed by Remez
Algorithm. Open a monitor for that.

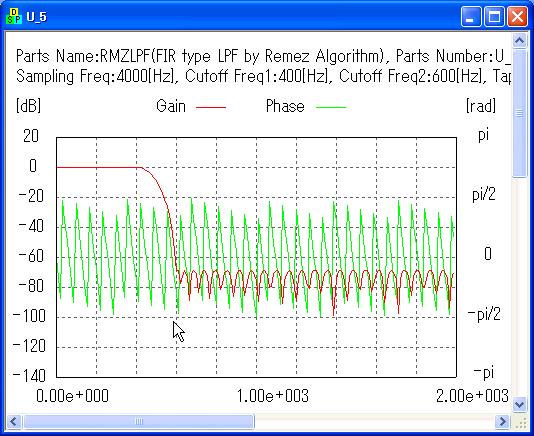

The frequency response is drawn like this. We can remove the frequencies
bigger than 600Hz by this.

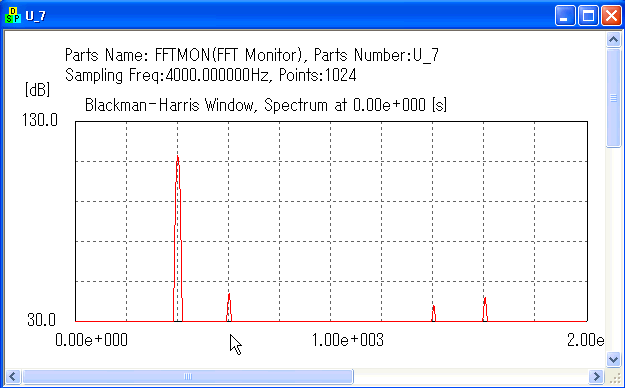

Then "Open a Monitor" for FFTMON(U_7).
Unnecessary frequencies have decreased a lot.

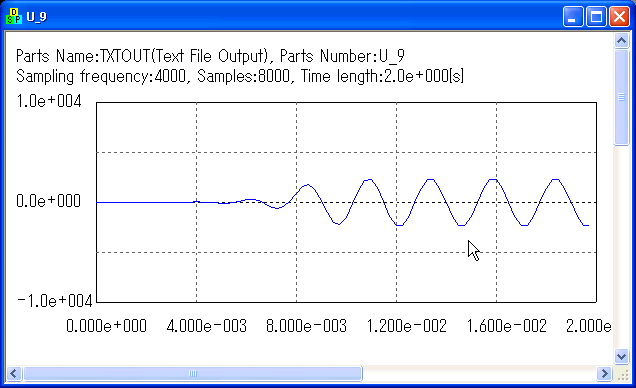

See how the series of data has changed by opening a monitor for TXTOUT(U_9).
You may see 400Hz of sine wave has been interpolated in good shape!! (The
delay is caused by the FIR filter) However, its magnitude is somewhat decreased...
|
