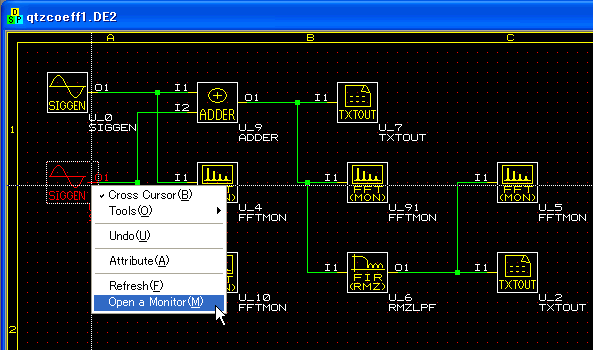

 Then you see a schematic like following. Let's quantize coefficients by using this schematic. Do left click to select SIGGEN (U_0) and right click to choose "Open

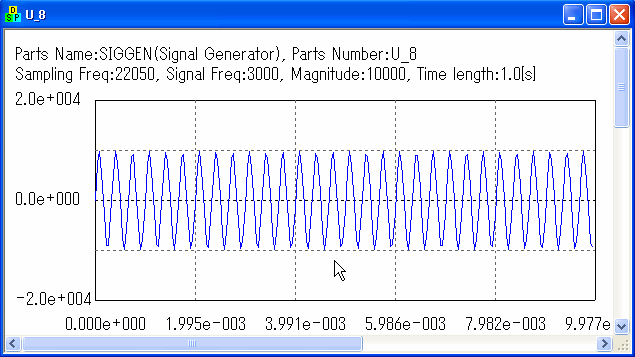

a Monitor".  This generates a sine wave which frequency is 400Hz. Next, open another SIGGEN (U_8). This generates a sine wave which frequency is 3kHz.
|
