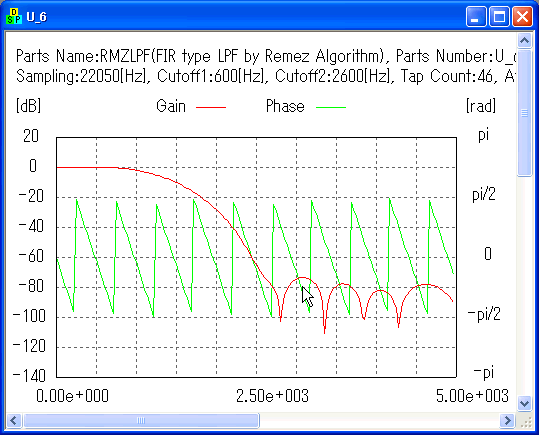

 So let's see how the characteristics changes. Open a monitor for RMZLPF

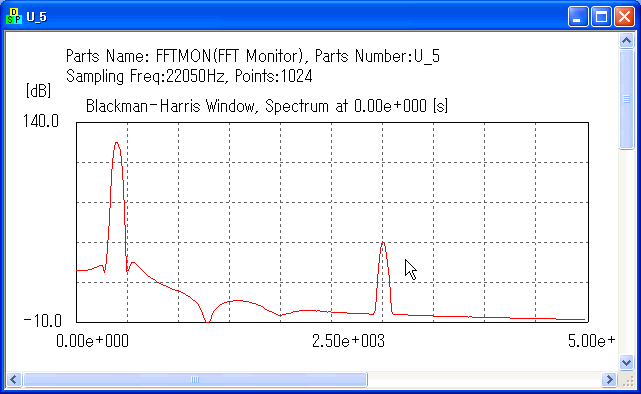

again.  The reduction ratio has become worse (-75dB). This is because the coefficients are quantized (by 16 bits).  After you save the schematic, please see the spectrum of U_5 again. 3kHz is decreased only -75dB. This is because reduction ratio of the filter is not enough.
|
