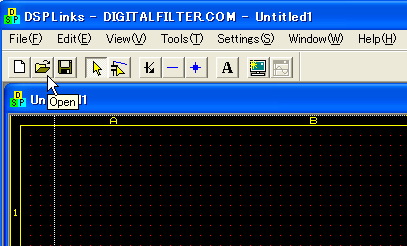

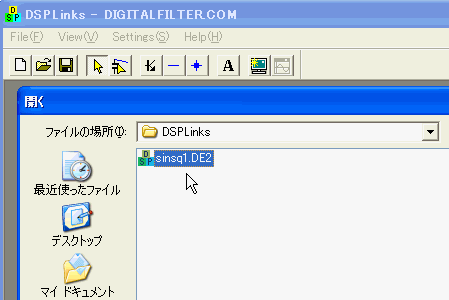

 Please click on "Open Mark" to open an existing schematic.  Open "sinsq1.DE2" that should resides in the same directory DSPLinks

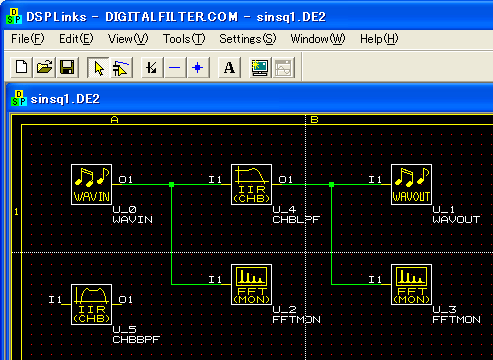

was installed.  The schematic will be opened like following. This is to filter a Wave file

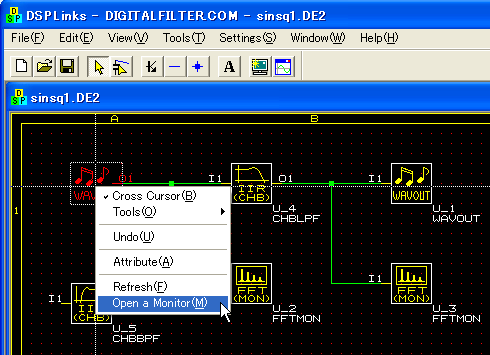

and show its spectrum.  Left click on WAVIN (U_0) to select it and right click to choose "Open
a Monitor".
|
