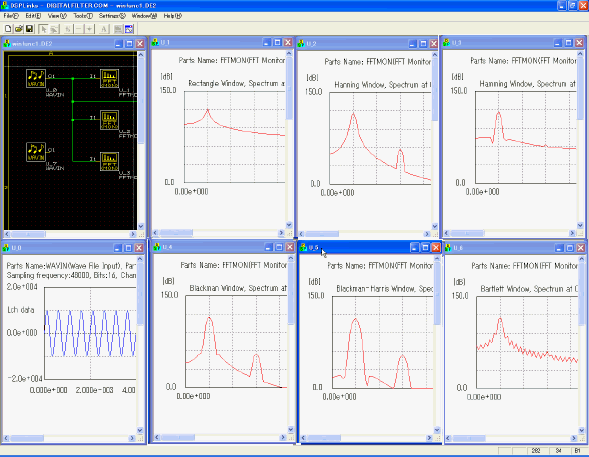

 If you choose "Window"->"Tile" on the menu, you
can see all monitor windows at the same time.  Please compare six windows and understand "Blackman-Harris Window"(U_5)

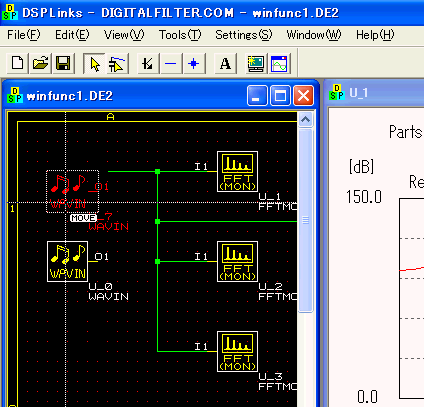

is the best one to find tiny signals like 6kHz, 10kHz, 14kHz...  By the way, you may have found another WAVIN (U_7) below. Please replace
it for U_0.  You need to save the schematic after any modification.
|
