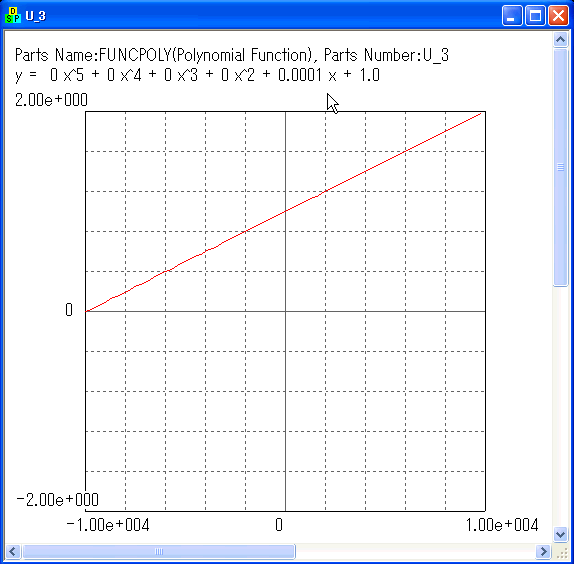

We put a function FUNCPOLY to adjust amplitude and DC (direct current) offset of the Base Band. Let's open a monitor for that.


You may see the function is ( y = 0.0001x + 1.0 ).

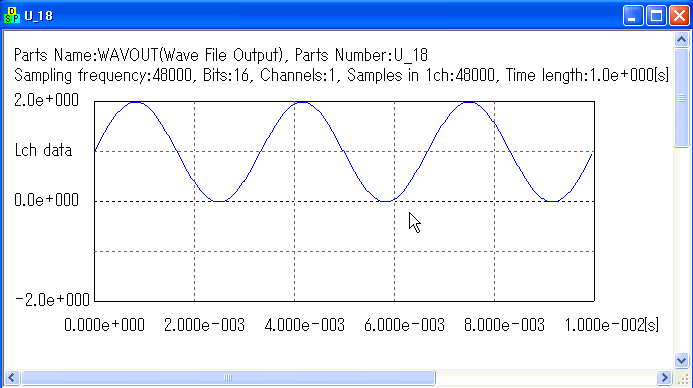

Open a monitor for WAVOUT (U_18) which shows the output of FUNCPOLY.


The amplitude has become very small (P-P is 2.0) and DC offset has become 1. As you see, the Base Band needs to be positive value anytime.
