Tutorial18: Try to quantize coefficients
Filter's coefficients are also quantized in DSP or some other hardware stuff. Let's try to do it and think how it affects on its characteristics.

First of all, you need to download DSPLinks and install it on your PC.

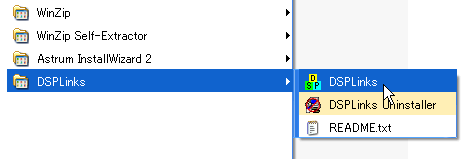

Please start "DSPLinks" after installation.

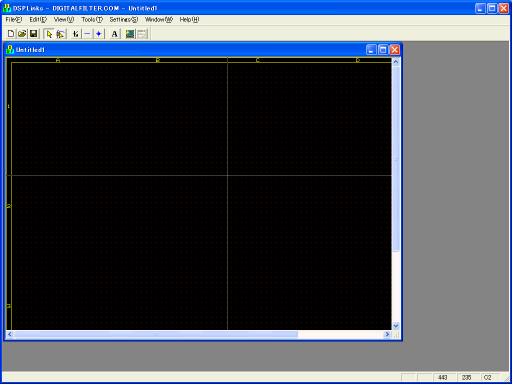

Then you see a blank schematic like following.

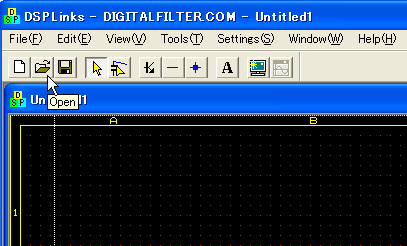

Please click on "Open icon" to open an existing schematic.

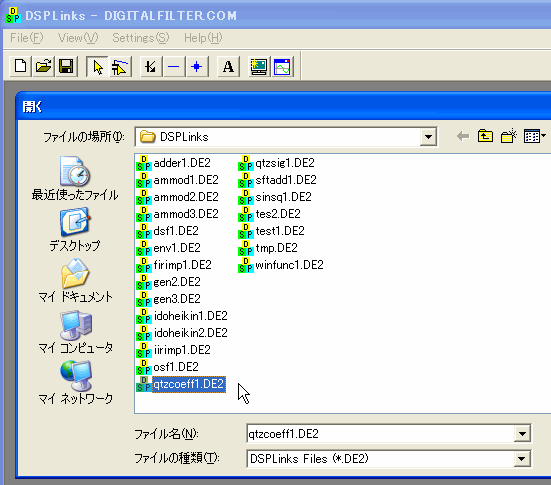

Open "qtzcoeff1.DE2", which should reside in the directory DSPLinks was installed. (Re-install the latest version of DSPLinks if you could not find that)
