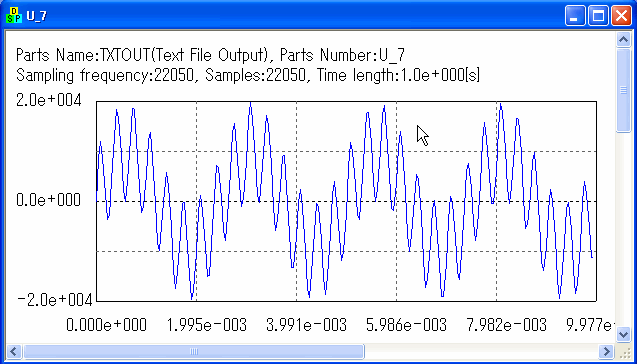

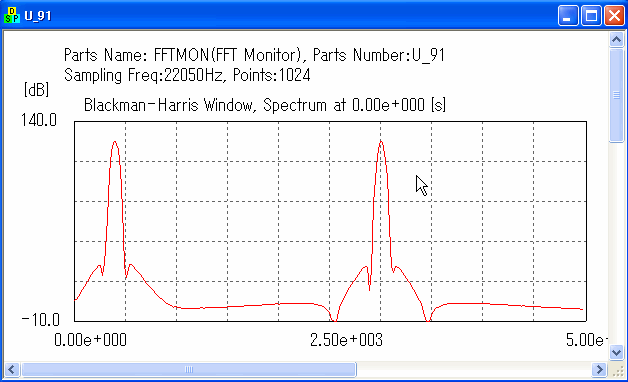

 There is a TXTOUT (U_7) after an adder. Let's open that.  400Hz and 3kHz are mixed like this.  Open a monitor for FFTMON (U_91).  This spectrum has two peaks at 400Hz and 3kHz.
|
