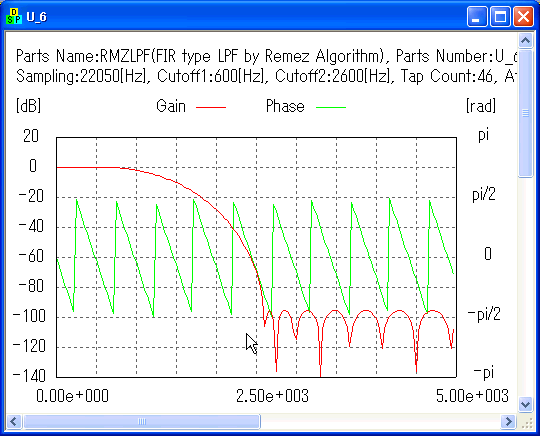

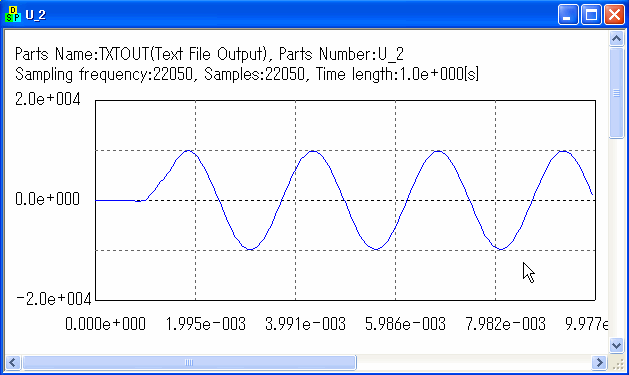

 We have an FIR filter after the adder, open a monitor for RMZLPF.  This is a LPF designed by Remez Exchange Algorithm.  So let's see the filtered output. Open TXTOUT (U_2).  High frequency (3kHz) is removed by the LPF with some delay. The delay
is caused by long tap count of the filter.
|
